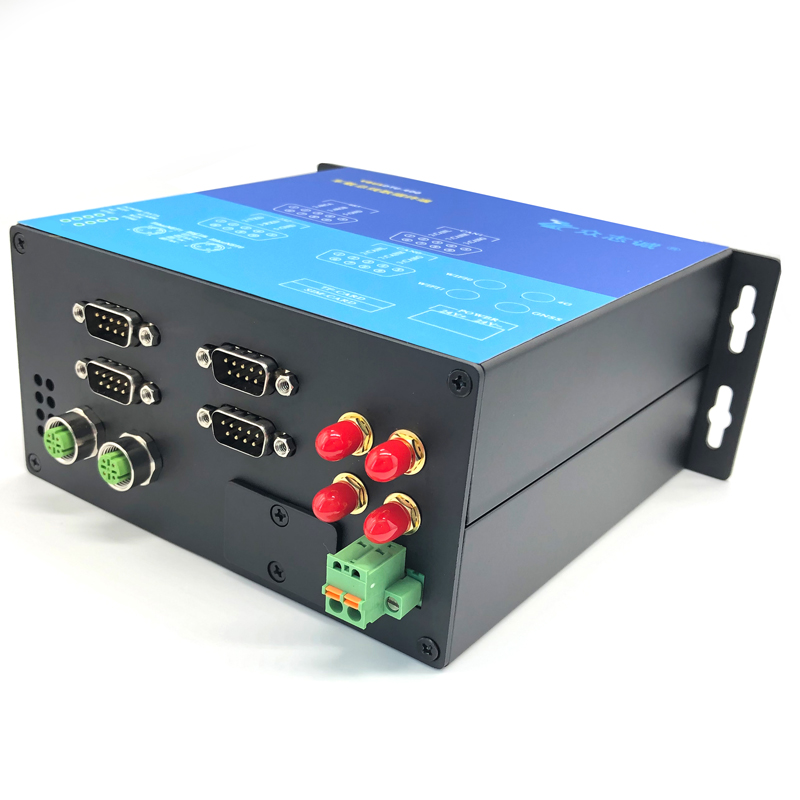

1. Product Item

2. Feature

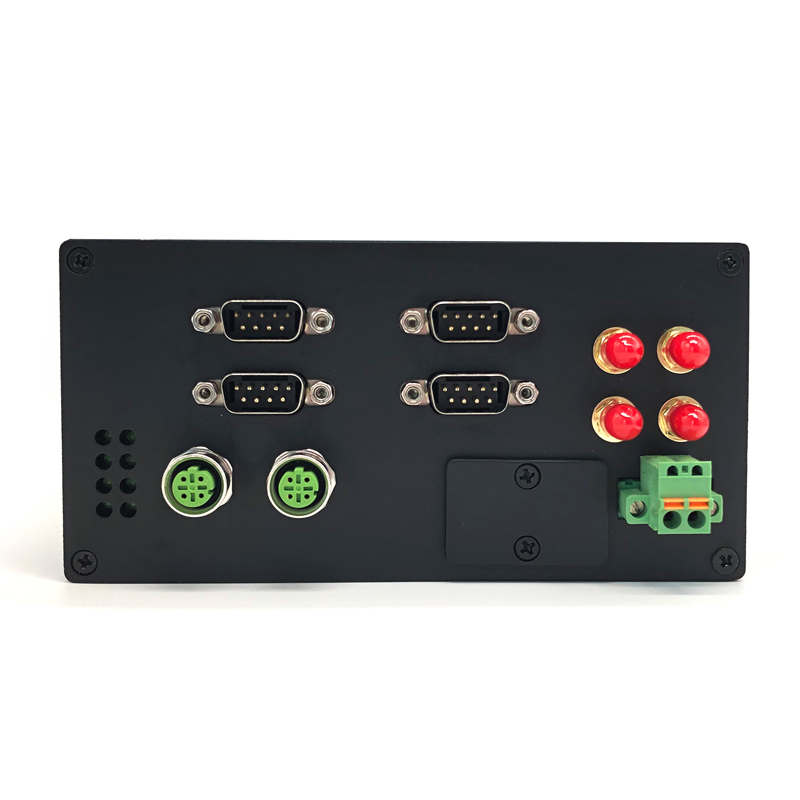

uTwo CAN channels are equipped with DB9 interface, support 5K-1Mbps baud rate;

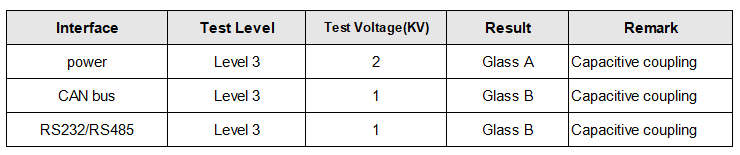

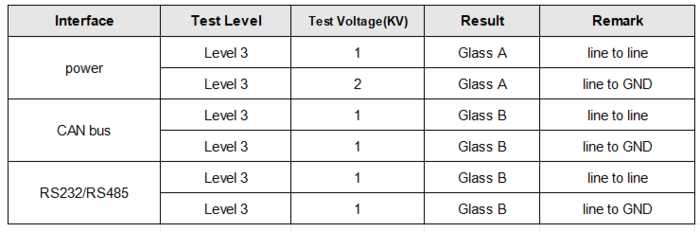

uCAN interface built-in 1KV surge protection, 3500VDC isolation voltage;

uTwo M12 interface Ethernets for configuration and real-time communication, which forms a redundant interface;

uCAN data storage capacity: standard 32GBTF;

uSupport continuous storage and timing storage mode;

uReal-time clock with built-in rechargeable battery;

uModels with WiFi support 2.4G and 5G band WLan communication, support AP, Station etc.;

uWith 4G and positioning model, globally support telecom, mobile, Unicom SIM card;

uOne RS232 and one RS485 interface is reserved for connecting serial port devices, the baud rate can support up to 115200;

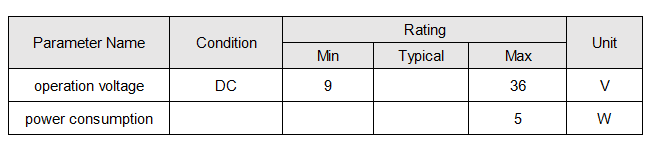

uMain power supply is with 9-36V wide voltage DC isolation power supply, isolation withstand voltage 1500VDC;

uOperating temperature: -40℃ ~ +85℃

uStorage temperature: -40℃ ~ +85℃

uMaximum relative humidity: 90%
