1. Normative Document

uEMC complies with the requirements of EN 50121-3-2:2006;

uModbus/RTU conforms to GB/T19582-2008 standards;

uCAN conform to ISO11898-1 standard;

uCANOpen conforms to both CiA301 and IEC61375-3-3 standard.

uIt complies with both general standard "EN50155" and vibration standard "IEC61373" from the rail transit .

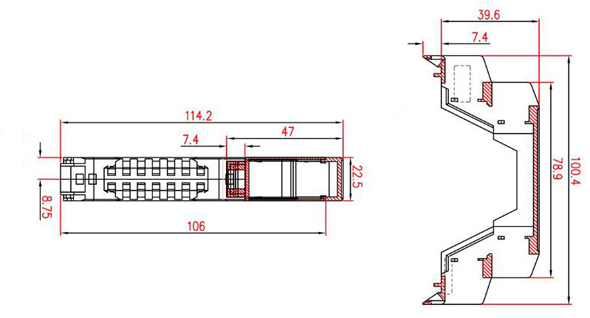

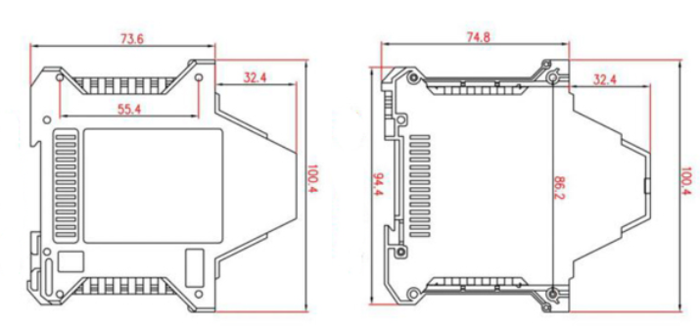

2. Mechanical Dimension

1. Product Feature

uIntegrated one CAN2.0B interface, and compatible with CAN2.0A, complies with ISO11898-1 standards;

uCAN baud rate supports high speed 40K~1Mbps, the default baud rate is 500Kbps;

uCAN interface electrical isolation: DC 2500V or AC 1700V;

uThe CAN interface is equipped with the standard CANOpen DB9 interface, which conforms to the IEC61375-3-3 standard.

uCANOpen supports PDO, SDO, NMT and other comprehensive CiA301 standard protocols.

uSupports up to 12 TPDO and 12 RPDO.

uIntegrated with 1 channel 3-wire RS-232 communication interface or 1 channel 2-wire RS-485 communication interface, the default communication rate is 38400bps, other baud rates are customizable.

uThe serial interface follows the standard Modbus/RTU protocol, and the default network card is Modbus master station.

uRS232/485 circuit is with DC 2500V electrical isolation;

uMain power supply is 9-36V wide voltage DC isolation power supply, and isolation withstand voltage 1500VDC, power consumption 1W;

uOperating temperature: -40℃ ~ +85℃

uStorage temperature: -40℃ ~ +85℃

uMax relative humidity: 90%
