1. Normative Document
uEMC meets the standard of EN 50121-3-2:2006;
uComplies with EN50155 and supports M12 connectors.
uConform to IEC61373(vibration and impact) IEC60068-2-32(free drop)
uSupport IEEE802.3/802.3u/802/3x, 10/100M, full/half duplex, MDI/ MDI-X adaptive.

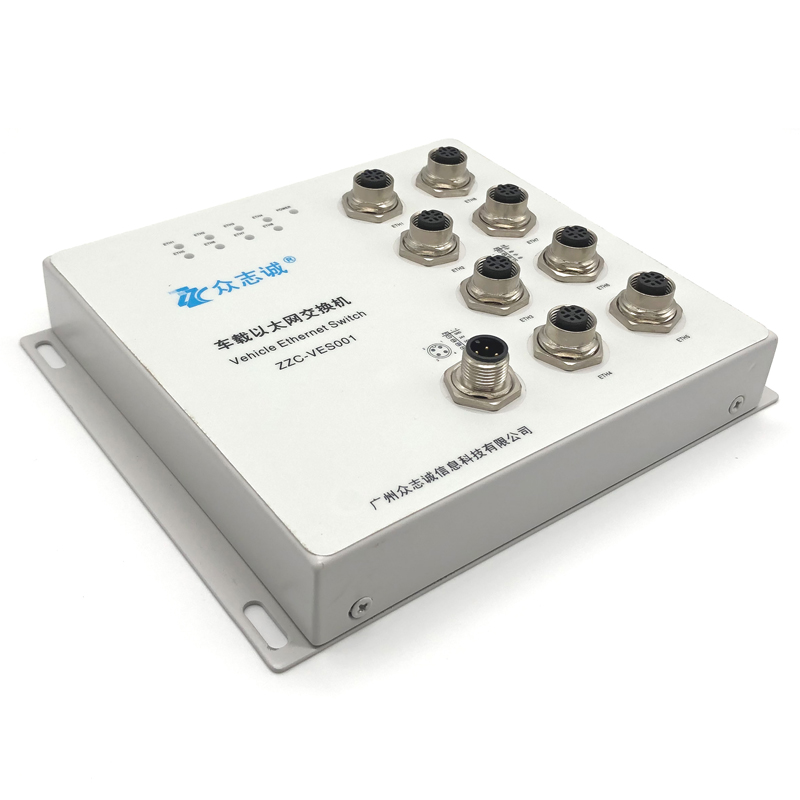

2. Interface Description

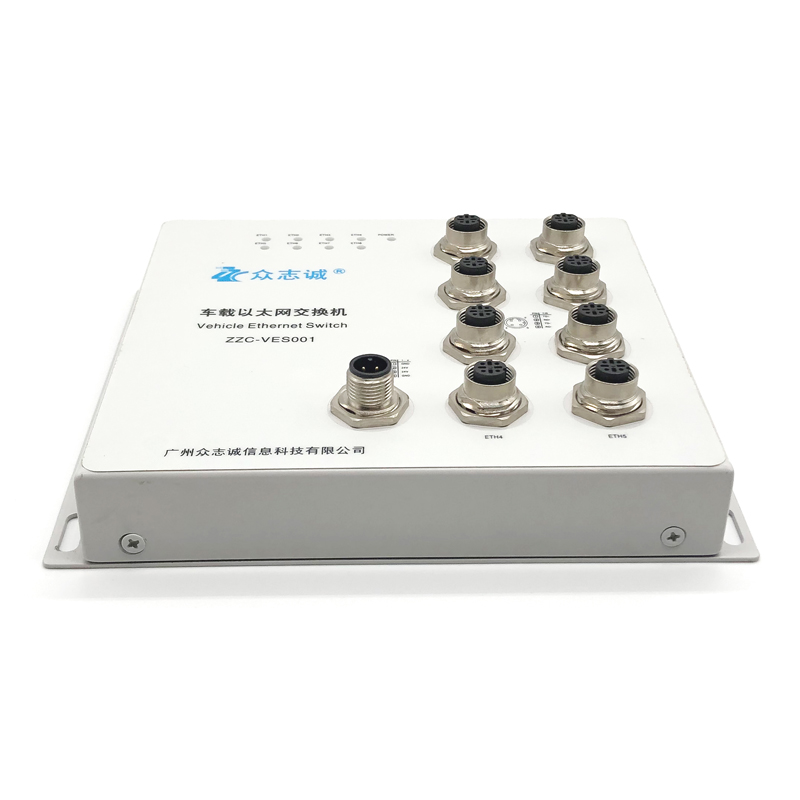

8pcs Ethernet M12 interfaces; 1pc power interface, support DC9V~DC36V wide voltage supply.
2.1 Ethernet Interface Definition

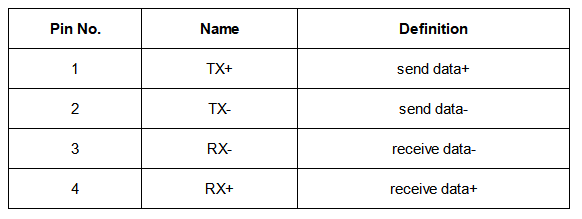

The switch is equipped with the railway special standard M12 Ethernet interface, interface definition as below:

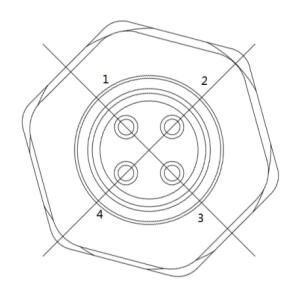

Definition of orifice interface (MVB-S2)

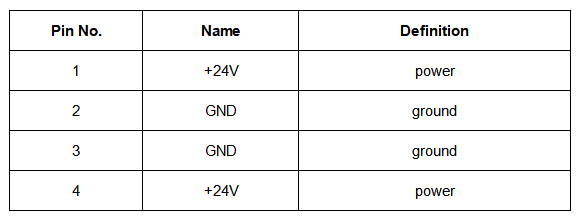

2.2 Power Supply Interface

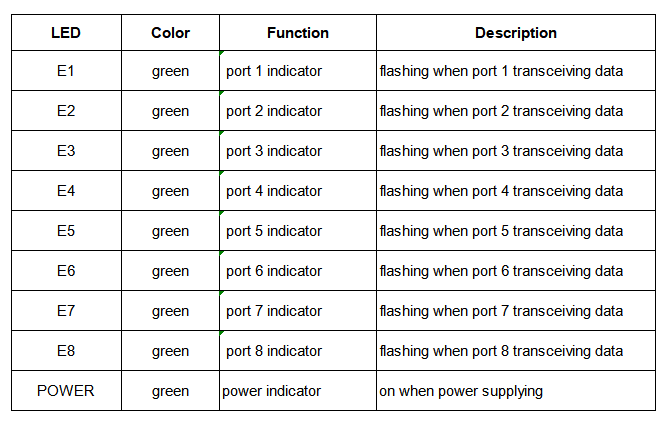

3. LED Description
