1. Normative Reference

uEMC meets the requirements of EN 50121-3-2:2006;

uCAN conforms to the latest standard ISO11898-1.

2. Interface Description

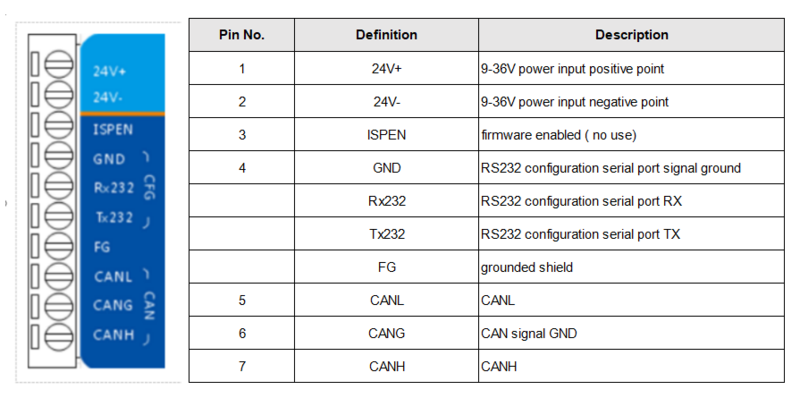

Pin Defintion of Terminal Interface

The port is a standard OPEN5 terminal with a three-wire connection as shown in the following table:

Note:

(1) When users use CAN bus, they need to connect 120 OHM terminal resistor at the terminal. This product does not have internal terminal resistance.

(2) Configure the serial port by using RS232 interface and computer cross connection. That is, the Tx232 of the product is connected with 2 feet of the computer DB9, the Rx232 is connected with 3 feet of the computer DB9,

and the GND is connected with 5 feet of the computer DB9.

(3) The power supply should be higher than 12V2A as far as possible to avoid the disconnection caused by insufficient power.

(4) The power supply has anti-reverse connection function.

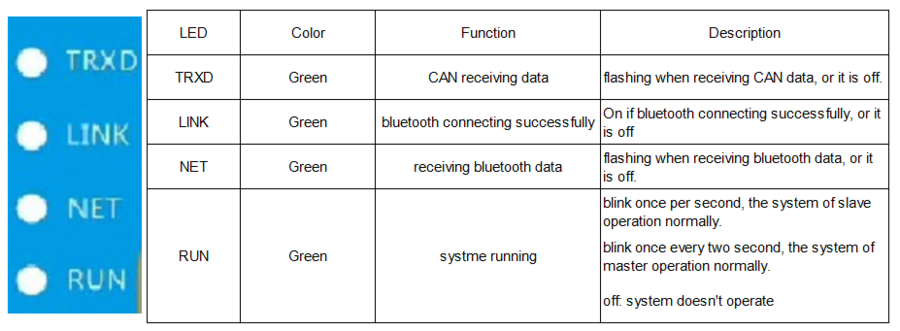

3. LED

1. Feature

uWireless standard: Bluetooth ® 5.0,ANT， AES HW Encryption security function;

uBluetooth frequency: 2400MHz-- 2483.5MHz, GFSK Modulation technology;

uBluetooth transmission rate: Uncoded: 1 Mbps / 2 Mbps, Coded: 125 kbps (S = 8) / 500 KBPS (S = 2);

uBluetooth working mode: Central/Peripheral, Bluetooth master can be connected by 9 slave stations;

uBluetooth MAC address is globally unique.

uBluetooth transmission power: -20 ~ +4 dBm configurable;

uBluetooth supports name connection, MAC connection and max signal connection.

uIntegrated one CAN2.0B interface, compatible with CAN2.0A, complies with ISO11898-1 standards;

uThe CAN baud rate is 40K~1Mbps, and the default baud rate is 250Kbps.

uCAN interface electrical isolation: DC 2500V or AC 1700V;

uCAN interface is with standard OPEN terminal;

uOne RS232 is provided as the parameter configuration port, and the baud rate is fixed to 115200bps.

uMain power supply is with 9-36V wide voltage DC isolation power supply, isolation withstand voltage 1500VDC;

uOperating temperature: -40℃ ~ +85℃

uStorage temperature: -40℃ ~ +85℃

uMax relative humidity: 90%
