TSN Gateway & Ethernet Storage

uEMC meets the requirements of EN 50121-3-2:2006;

uCAN complies with the latest standard of ISO11898-1.

2.Protection Class

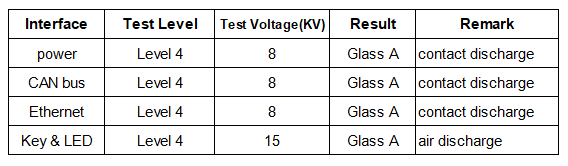

2.1 Protection class - Electrostatic discharge immunity test (IEC61000-4-2)

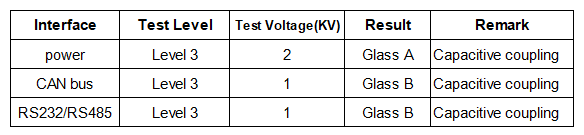

2.2 Protection Class-Electrical Fast Transient Pulse group immunity test (IEC61000-4-4)

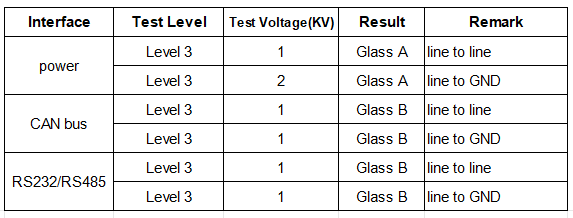

2.3 Protection class - Surge (impact) test (IEC61000-4-5)

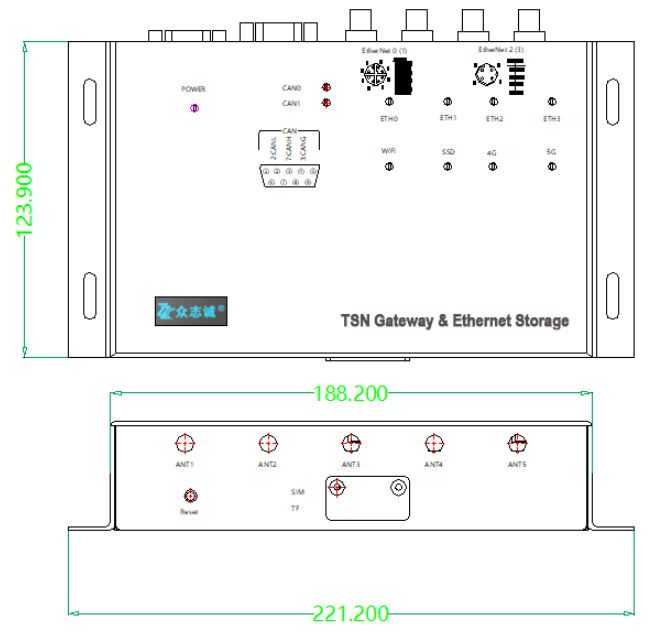

3. Mechanical Dimension

4. Interface Defintion

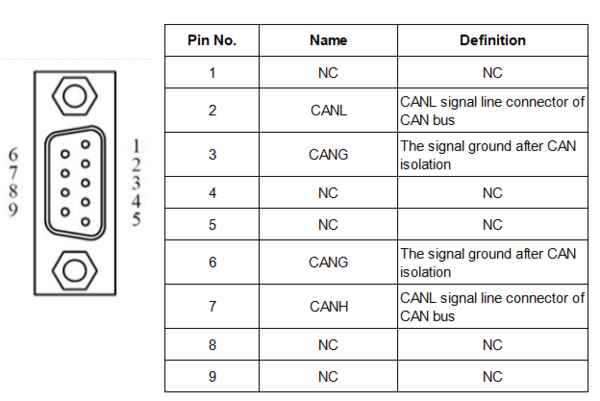

4.1 CAN Interface Pin Definition

The port is a standard DB9 male (pin) terminal with a built-in 120 OHM female terminal resistor switch.

4.2 Ethernet Interface Pin Definition

ETH0 is the format conversion interface for record   configuration and data, as well as data transmission, ETH1/ETH2/ETH3 is the Switch interface.

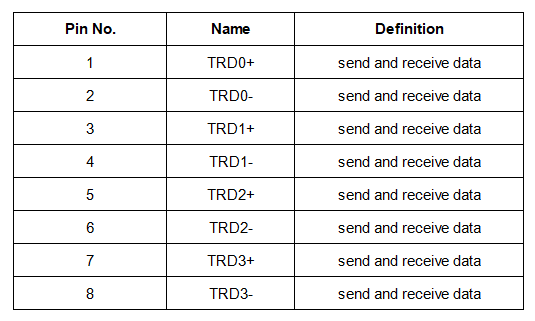

ETH0,ETH1 are 1000 Megabit Ethernet interface, which is   "A" code M12 connector, M12 connector with metal shield case. And the pin defintion as follows:

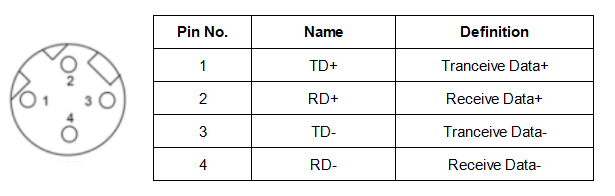

ETH2,ETH3 are 100 MBPS Ethernet which is "D" code M12 connectors with metal shield case. The pin defintion as follows:

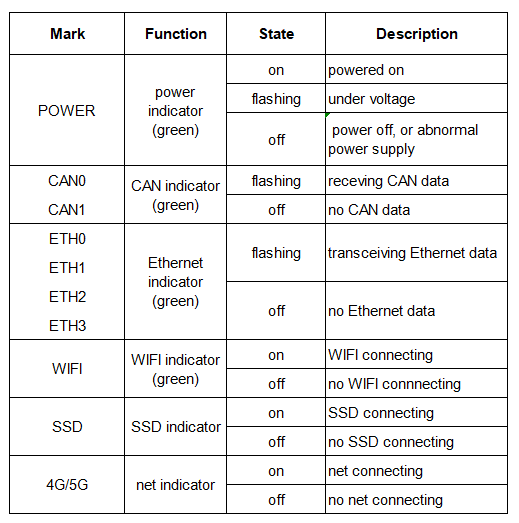

5. LED Description

1. Product Model

2. Product Feature

u2 CAN channels, DB9 interface, support 5K-1Mbps baud rate, and CAN FD data rate is optional;

uCAN interface built-in 1KV surge protection, 3500VDC isolation voltage;

u4 M12 interface Ethernet for configuration and real-time communication, which may be composed of   redundant interface;

uAll four M12 interfaces comply with IEEE 802.1TSN,   and support hardware timestamp to ensure accurate clock synchronization. Three of them support TSN hardware Switch function, and the 2 layers forwarding between switches does not occupy CPU load at all.

uCAN and Ethernet data storage capacity standard 32G TF / 128GB solid state disk;

uSupport continuous storage and timing storage mode;

uReal-time clock is built-in with rechargeable battery;

uModels with WiFi support 2.4G and 5G band WLan communication, support AP,Station and other modes;

uWith 4G/5G and positioning models, full netcom support telecom, mobile, Unicom SIM card;

u1 RS232 or 1 RS485 interface is reserved for connecting UART devices, the baud rate can support up to 115200;

uMain power supply is with 12-36V wide voltage DC isolation power supply, isolation withstand voltage 1500VDC;

uOperating temperature: -40℃ ~ +85℃

uStorage temperature: -40℃ ~ +85℃

uMax relative humidity: 90%
